Logic Board Photos of Next-Generation iPhone

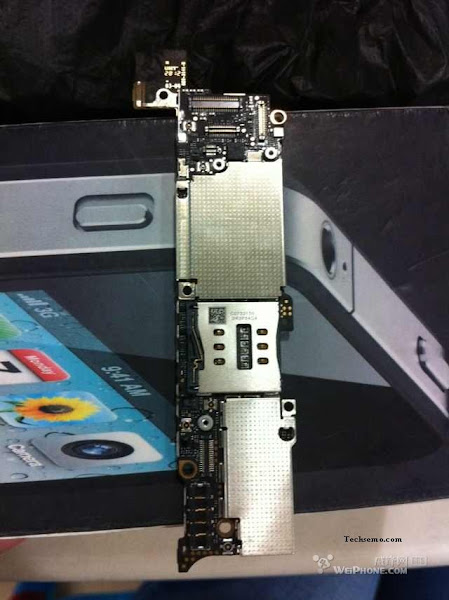

The images come from famous Chinese language forum WeiPhone.com (via Nowhereelse.fr) and appear to show a never-before-seen iPhone logic board with EMI shielding covering most of the internal components.

Logic Board Photos of Next-Generation iPhone

In comparison to the current iPhone 4S, the logic board will retain its positioning on the right side of the handset. An interesting change from past iPhones is the monolithic EMI shielding on the board's underside, which in previous generations was split into two or three separate sections.

Logic Board Photos of Next-Generation iPhone

The SIM card tray slot can just barely be seen, however it is not possible to make out whether the logic board will employ the Apple-backed nano-SIM standard recently ratified by the European Telecommunications Standards Institute. Photos of what is believed to be a nano-SIM tray bound for the next-gen iPhone surfaced less than a week ago.

Apple is expected to announce the new iPhone (iPhone 5), which is rumored to sport a larger 4-inch screen and possible LTE connectivity, at an as-yet-unannounced special event on this September 12.
